2023 Benimar Tessoro 463

Stylish and Practical

POA

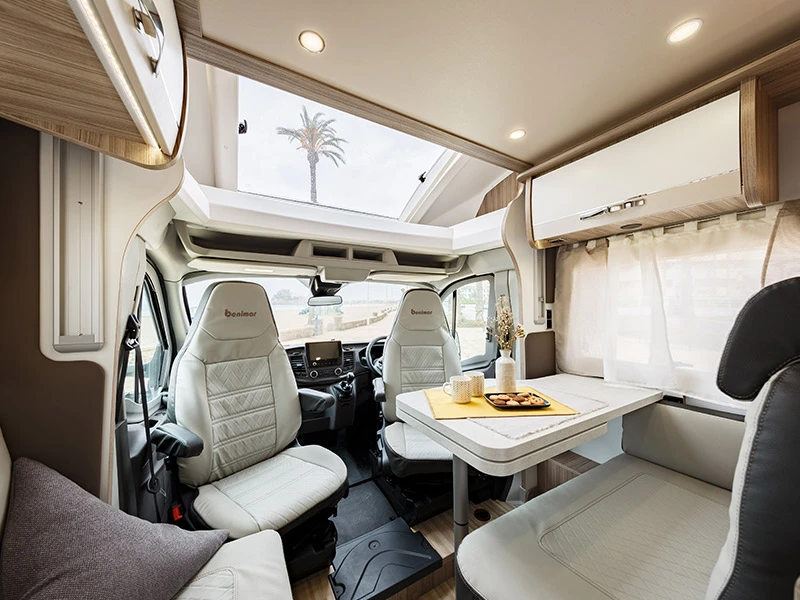

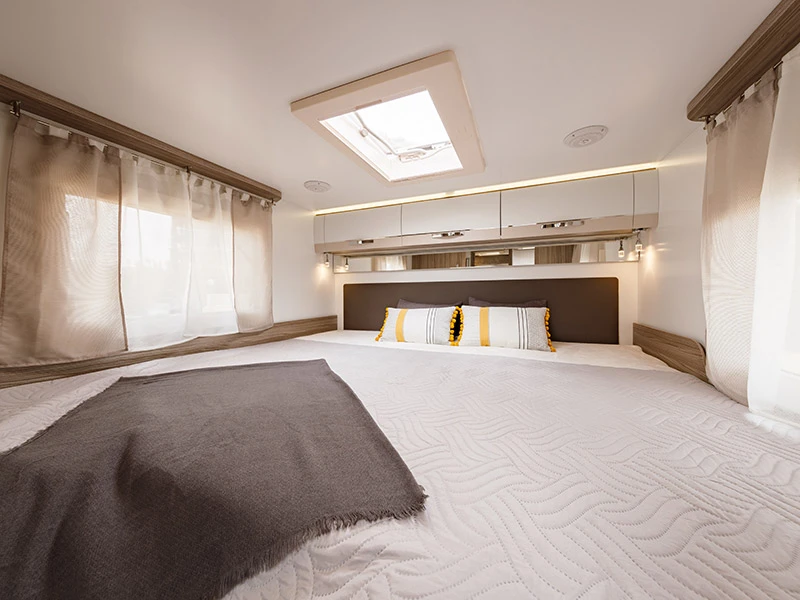

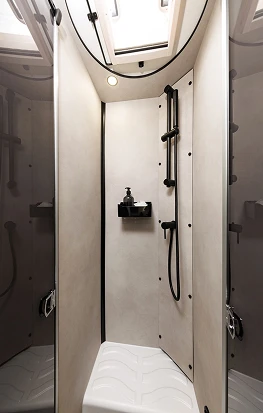

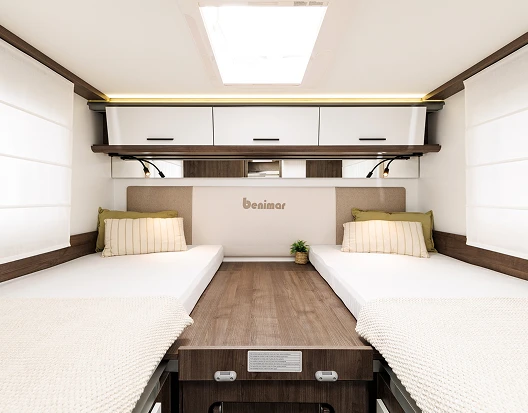

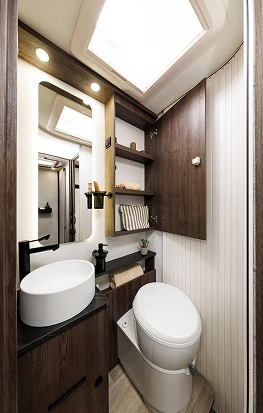

The twin bed 463 model is practical for a family of four. The two rear beds that can be converted into a huge double are ideal for families and couples who are sometimes accompanied. There is also a drop down double bed above the dining room/lounge for two more. A front dinette area is complimented with rotating cab captain style seats and provides very comfortable eating for up to 5 people. The bathroom is separated into two and the rear bathroom/bedroom area has a privacy door which separates it from the living room. There is also a large garage underneath which is accessible from both sides.

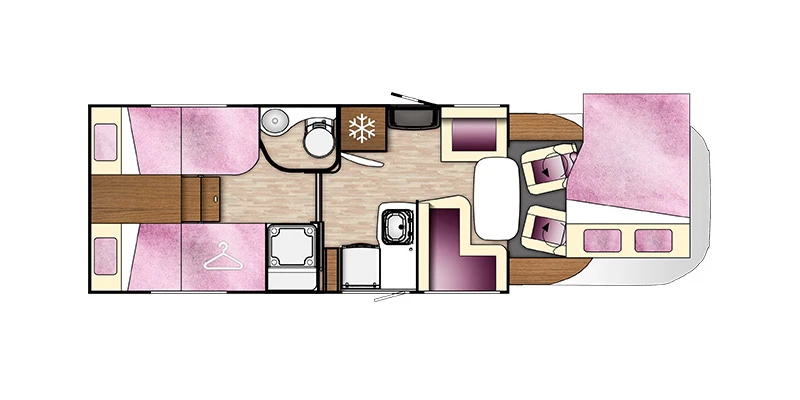

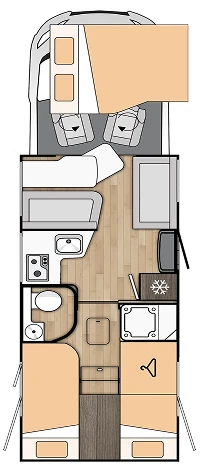

Floor Plan
Benimar - Tessoro 463

Specification

Seat belts (including driver) 4
Berths (sleeping positions) 4
Overall length 7.38m
Overall width (mirrors folded) 2.30m
Overall height 2.89m
MTPLM (a)* 3500kg
Mass in running order (b)* 3134kg
Maximum user payload (a-b) 366kg
Gross train weight 5050kg
Maximum trailer weight 1550kg
Rear Garage Aperture Dimensions (mm)# 1130(h) x 1205(w) x 2175(d)
Rear Garage Max Load Limit 225kg

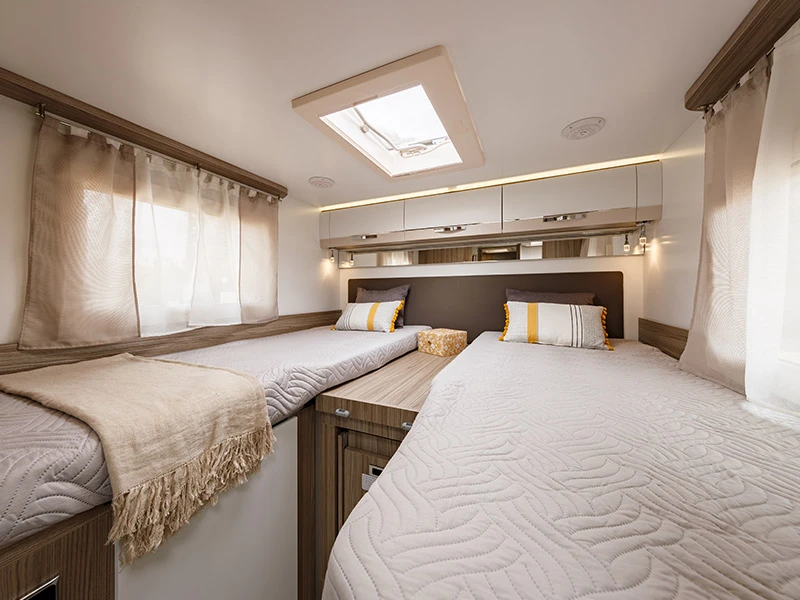

Rear Bed 2 x Single 800mm x 1900mm / 2'6" x 6'2"

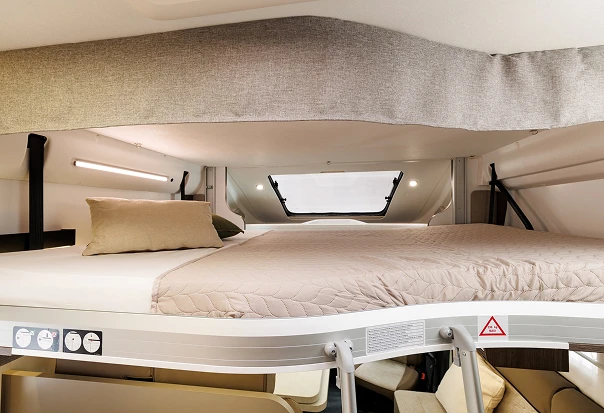

Hinged Roof Bed Double 1390mm x 1900mm / 4'6" x 6'2"
Chassis Ford
Engine size 2 litre
Gearbox Manual
Engine power 170bhp

IMPORTANT INFORMATION

Data & accuracy: The contents of this publication are as accurate as possible at the time of going to press, but this information should not be regarded as an infallible guide to current specifications, nor does it constitute an offer for the sale of any particular vehicle. Details of performance, dimensions and weights are subject to minor deviations within manufacturer tolerance limits (max +/- 5%).

  • The Mass In Running Order (MIRO) - Weight of the Motorhome equipped to the manufacturer’s standard specification including essential habitational equipment.
  • Maximum User Payload includes Personal Effects Payload, conventional load and the Optional Equipment Payload.
  • Maximum Technically Permissible Laden Mass (MTPLM) - The technical maximum permissible laden weight of the Motorhome.
  • Please ensure that you’ve allowed for the masses of all items you intend to carry in the Motorhome.
  • All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof. All dimensions have a tolerance of +/- 25mm.
  • Your Motorhome weights have been calculated with all water tanks empty and we recommend you travel with all water tanks empty.
  • Warning - Under no circumstances should the plated MTPLM of the Motorhome be exceeded.
  • Heights are measured on an unladen vehicle with the aerial in the lowest position.
  • Bed sizes have been rounded to the nearest inch.
  • The maximum weight capacity for an electric drop down bed is 250kg, fixed rear beds have a limit of 250kg, overcab beds are 250kg and bunk beds 100kg.
  • The optional Automatic gearbox on the Ford Chassis will increase the MIRO by 50kg and therefore reduce the user payload by the same amount.

# Garage dimensions quoted are “aperture” height and width and interior garage dimensions may vary.

Features

  • Ford Euro 6D Chassis with 170bhp engine with AdBlue technology inc ABS Brakes, ESP Traction Control & Hill Assist
  • Ford Pass Connect
  • Multi positional drop down beds
  • Touch screen DAB radio with MP3 Player, USB Port, Sat Nav, Bluetooth handsfree & integrated rear view camera
  • Solar Panel
  • Automatic Headlights & Windscreen Wipers
  • Exterior BBQ and Shower Points
  • Grade III Fully Insulated use
  • 99% Wood Free Construction
  • Cab Air Conditioning & Cruise Control
  • Secure Habitation Door with Remote Central Locking

Warranty

  • 5-year water ingress guarantee
  • 24 month Habitation guarantee
