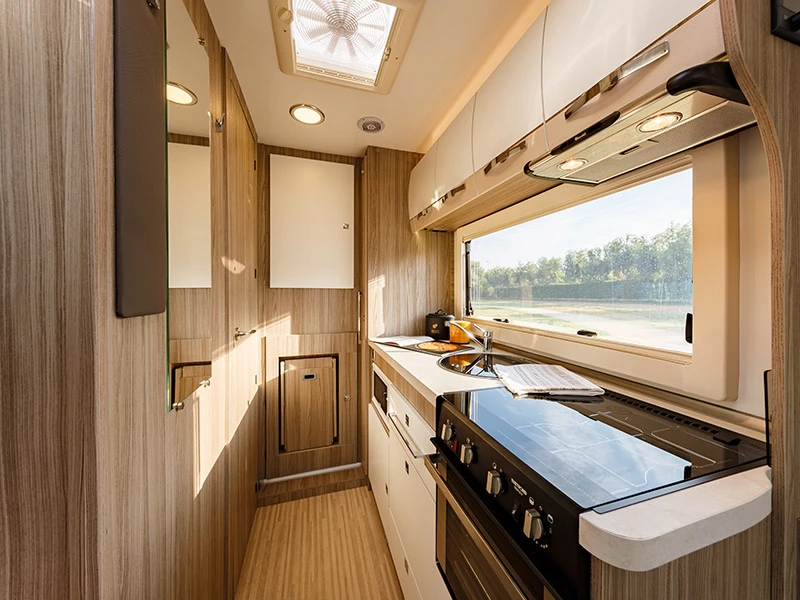

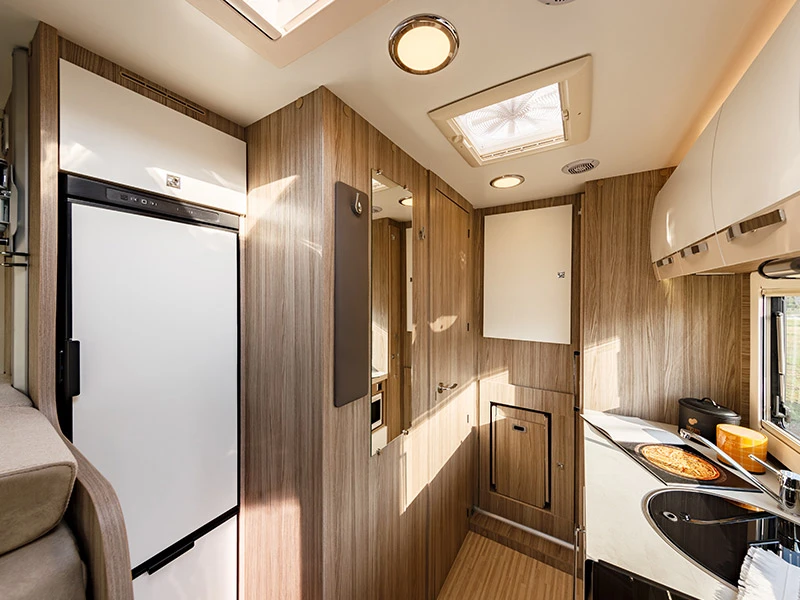

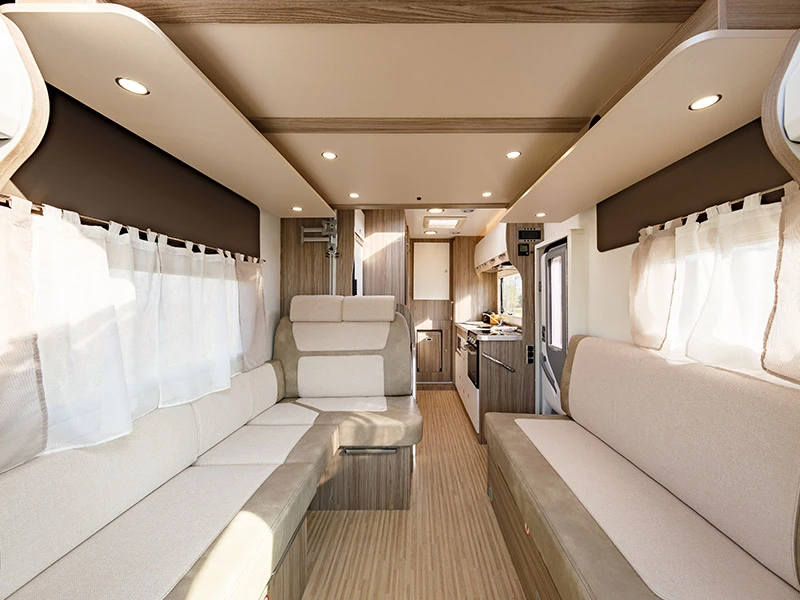

The Tessoro 486 is a 4 berth layout with two double beds, one being electric fold down. The practical layout consists of many features to increase living experience including a bathroom with separate shower, large kitchen work top surface, large L shape lounge with free standing table, magnificent rear garage and vertical bottle rack plus many more. The 486 offers plenty of storage and ample living space as well as many luxurious features customers have come to expect from the Tessoro range.

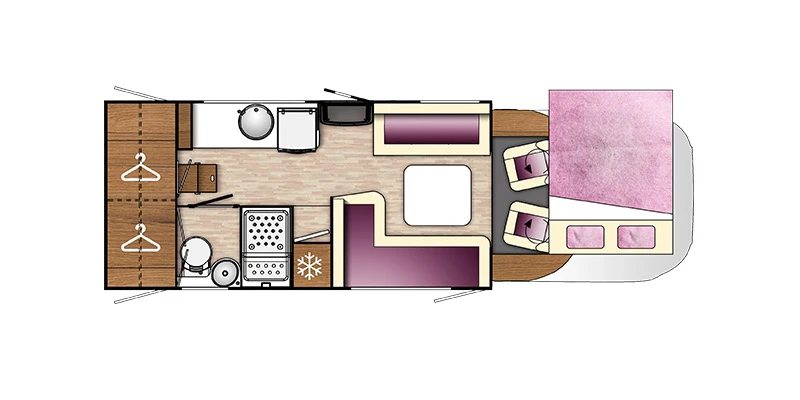

Floor Plan
Specification
| Seat belts (including driver) |
4 |
| Berths (sleeping positions) |
4 |
| Overall length |
6.98m |
| Overall width (mirrors folded) |
2.30m |
| Overall height |
2.89m |
| MTPLM (a)* |
3500kg |
| Mass in running order (b)* |
3027kg |
| Maximum user payload (a-b) |
473kg |
| Gross train weight |
5050kg |
| Maximum trailer weight |
1550kg |
| Rear Garage Aperture Dimensions (mm)# |
1190(h) x 805(w) x 2175(d) |
| Rear Garage Max Load Limit |
225kg |
| Front Bed |
Double 1400mm x 2100mm / 4’6’’ x 6’9’’ |

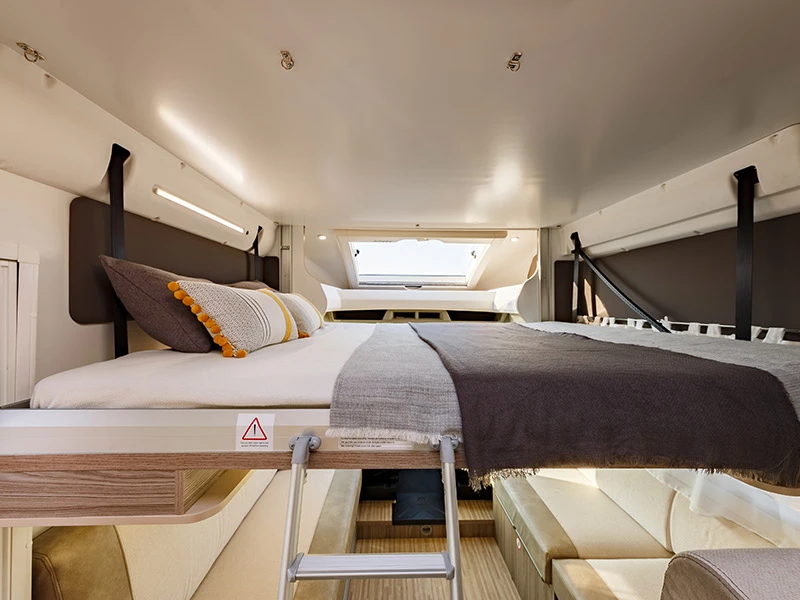

| Hinged Roof Bed |
Double 1390mm x 1900mm / 4’6’’ x 6’2’’ |
| Chassis |
Ford |
| Engine size |
2 litre |
| Gearbox |
Manual |
| Engine power |
170bhp |
IMPORTANT INFORMATION
Data & accuracy: The contents of this publication are as accurate as possible at the time of going to press, but this information should not be regarded as an infallible guide to current specifications, nor does it constitute an offer for the sale of any particular vehicle. Details of performance, dimensions and weights are subject to minor deviations within manufacturer tolerance limits (max +/- 5%).
- The Mass In Running Order (MIRO) - Weight of the Motorhome equipped to the manufacturer’s standard specification including essential habitational equipment.
- Maximum User Payload includes Personal Effects Payload, conventional load and the Optional Equipment Payload.
- Maximum Technically Permissible Laden Mass (MTPLM) - The technical maximum permissible laden weight of the Motorhome.
- Please ensure that you’ve allowed for the masses of all items you intend to carry in the Motorhome.
- All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof. All dimensions have a tolerance of +/- 25mm.
- Your Motorhome weights have been calculated with all water tanks empty and we recommend you travel with all water tanks empty.
- Warning - Under no circumstances should the plated MTPLM of the Motorhome be exceeded.
- Heights are measured on an unladen vehicle with the aerial in the lowest position.
- Bed sizes have been rounded to the nearest inch.
- The maximum weight capacity for an electric drop down bed is 250kg, fixed rear beds have a limit of 250kg, overcab beds are 250kg and bunk beds 100kg.
- The optional Automatic gearbox on the Ford Chassis will increase the MIRO by 50kg and therefore reduce the user payload by the same amount.
# Garage dimensions quoted are “aperture” height and width and interior garage dimensions may vary.
Features
- Ford Euro 6D Chassis with 170bhp engine with AdBlue technology inc ABS Brakes, ESP Traction Control & Hill Assist
- Ford Pass Connect
- Multi positional drop down beds
- Touch screen DAB radio with MP3 Player, USB Port, Sat Nav, Bluetooth handsfree & integrated rear view camera
- Solar Panel
- Automatic Headlights & Windscreen Wipers
- Exterior BBQ and Shower Points
- Grade III Fully Insulated use
- 99% Wood Free Construction
- Cab Air Conditioning & Cruise Control
- Secure Habitation Door with Remote Central Locking
Warranty
- 5-year water ingress guarantee
- 24 month Habitation guarantee
